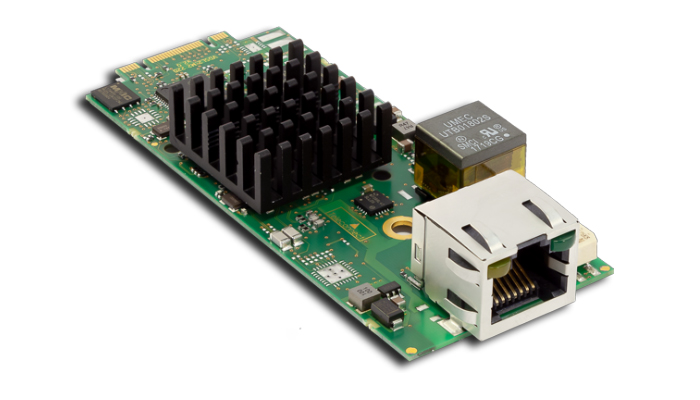

VDSL2.M2.220

ADSL/VDSL2 – Access Module

Designed to support the wide deployment of triple play services such as voice, video, data and high-definition television (HDTV), VDSL2 is intended to enable operators and carriers to gradually, flexibly and cost-efficiently upgrade existing xDSL infrastructure.

ADSL | VDSL2 | M.2
Category:

Description

ADSL/VDSL2 – Access Module
for universal enterprise CPE like uCPE/IAD/Gateway/Router/PC/White Box

Designed to support the wide deployment of triple play services such as voice, video, data and high-definition television (HDTV), VDSL2 is intended to enable operators and carriers to gradually, flexibly and cost-efficiently upgrade existing xDSL infrastructure.



Technical data

  • Data rates up to 200+ Mbps downstream and upstream on twisted pairs using a bandwidth up to 30 MHz
  • VDSL2: ITU-T G.993.2 Profiles 8, 12, 17, 30 MHz
  • ADSL: ITU-T G.992.1/3/5 Annexes A, B, I, J, M, L
  • ITU-T G.993.5 Vectoring
  • Ethernet-to-PCIe Bridge (Standard NIC-Drivers)
  • Gigabit Ethernet link to Ethernet-to-PCIe bridge
  • Features depending on M.2 connector type (B+M):
    – Core functionality at the PCIe lane 0 (available forkey B and key M) for data and in-band management
    – Additional function out-of-band management over USB (only for key B)
  • Plug & Play VDSL2 module for M.2
  • ADSL fallback (auto-detection)
  • Ethernet Controller
  • Available for oPOTS and oISDN regions
  • M.2 connector (Key B+M)
  • Fully transparent bridge for VDSL2 and ADSL (1 VC), to enable routing on host
  • Made for universal enterprise CPE / IAD /Gateway / Router / PC / White Box CPE

Application areas

Business Customer Networking
Industrial Networking
Enables connectivity of virtualisation device over copper networks
Supports SD-WAN deployments
