Legacy Service Gateway
ACCEED 5101 focusses on Network migration. Today more and more services are provided via Ethernet networks. But still there is a need to support services with classical TDM interfaces.

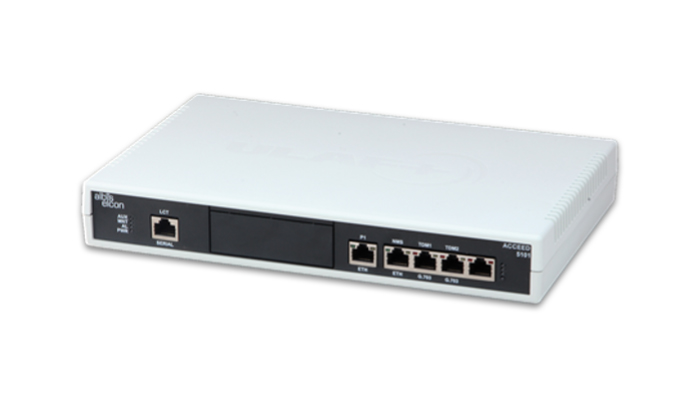

ACCEED 5101
Description
Legacy Service Gateway
G.703 / X.21 / V.35 / V.36 to electrical Fast Ethernet
ACCEED 5101 focusses on Network migration. Today more and more services are provided via Ethernet networks. But still there is a need to support services with classical TDM interfaces. A gateway between the TDM and packet world is required to enable a smooth network megration. ACCEED 5101 is the solution for such requirements.
ACCEED 5101 provides classical G.703 TDM interfaces. Also it is possible to eqip data modules according the requirements to support additional X.21 / V.35 / V.36 interfaces. CES (Circuit emulation techology is used to tunnel the TDM services over the Ehernet network.
ACCEED 5101 supports Carrier Fast Ethernet services and comprehensive SLA enforcement. Extensive traffic management and supervision at the user network interface (UNI) as well as integrated TDM CES interworking functions enable the implementation of a broad variety of crucial applications.
Technical data
- Electrical Fast Ethernet (RJ45)
- CES (Circuit Emulation Services) for TDM data transport over Ethernet
- 2 x E1 Interfaces support
- Data Module Slot (DMS) for TDM data modules
- Data modules available for X.21, V.35, V.36
- V.35 module in two variants: With Sub-D 15 Pin or ISO2593 connector
- Standard Ethernet Link and Service OAM
- Intuitive graphical configuration tool
Application areas
Legacy Networks migration
Circuit Emulation Services over Ethernet Networks
Utility Solutions
