30 Port 10 Gigabit Carrier Ethernet Edge Aggregation Device
The ACCEED 4630 Edge Aggregation Switch with 16x10G and 14x1G interfaces supports protected Carrier Ethernet Aggregation and comprehensive SLA enforcement for thousands of services.

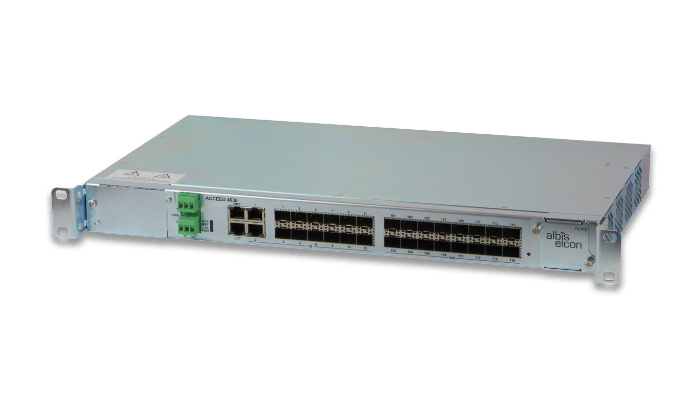

ACCEED 4630
Description
10 Gigabit Ethernet Aggregation
30 Port Carrier Ethernet Edge Aggregation Device
The ACCEED 4630 Edge Aggregation Switch with 16x10G and 14x1G interfaces supports protected Carrier Ethernet Aggregation and comprehensive SLA enforcement for thousands of services. Extensive traffic management and supervision at the user network interface (UNI) as well as integrated PTP functions enable the implementation of a broad variety of crucial applications.
……..
Technical data
- 10 Gigabit Ethernet Aggregation
- Support SFP+ and SFP with DDM
- Network demarcation allowing SLA enforcement for thousands of flows
- Ethernet services with guaranteed bandwidth per flow
- Hierarchical bandwidth profiles
- 174 Gbit/s full-duplex line rate switching
- Sub-50ms switchover time for Ethernet Linear and Ring Protection Switching
- LAG and Multi Chassis LAG
- Synchronization with IEEE 1588v2 and SyncE
- Standard Ethernet Link and Service OAM
- 3.3ms CCM intervals
- Built-in 10G Y.1564 Service Activation Test
- TWAMP
- Static MPLS pseudowire tunneling
- Intuitive graphical configuration tool
- NETCONF/YANG
- Zero Touch Provisioning
Application areas
High Speed Business Access
Protected Ethernet Aggregation
5G Fronthaul and Backhaul
